VITA 46.11 Intelligent Platform Management Controller (IPMC) Software

The Intelligent Platform Management Controller (IPMC) Software provides all the mandatory Tier 3, and optional VITA46.11-2022 features. The software supports a predefined set of sensors: temperature, voltage, current, fan, GPIO or OEM sensors that are constantly monitored and reported to the Chassis Manager via standard IPMB interface or to the Payload CPU/FPGA over standard IPMI2.0 Serial Basic Mode or proprietary I2C protocol.

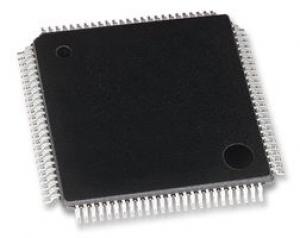

The software is available as source code license or it can be delivered on pre-programmed microcontrollers. A dedicated IPMC software version for VITA62 PSUs is also available. For software evaluation, a VPX test card is available (P16089) along with reference designs on request.


Key market features:


  • Compliant to IPMI 2.0
    • Compliant to VITA46.11-2022, Tier 3
      • SOSA v2.0 aligned
        • Serial Basic Mode Payload Interface
          • Proprietary simplified I2C protocol used to extend payload sensors
            • IPMI Firewall Support
              • Software upgrade over IPMB using standard PICMG HPM.1 protocol
                • IPMC software was ported to multiple devices: LPC55S, IMXRT1171, Kinetis K22, PolarFire
                  • GUI SDR and FRU compilers available
